Szállító láncok

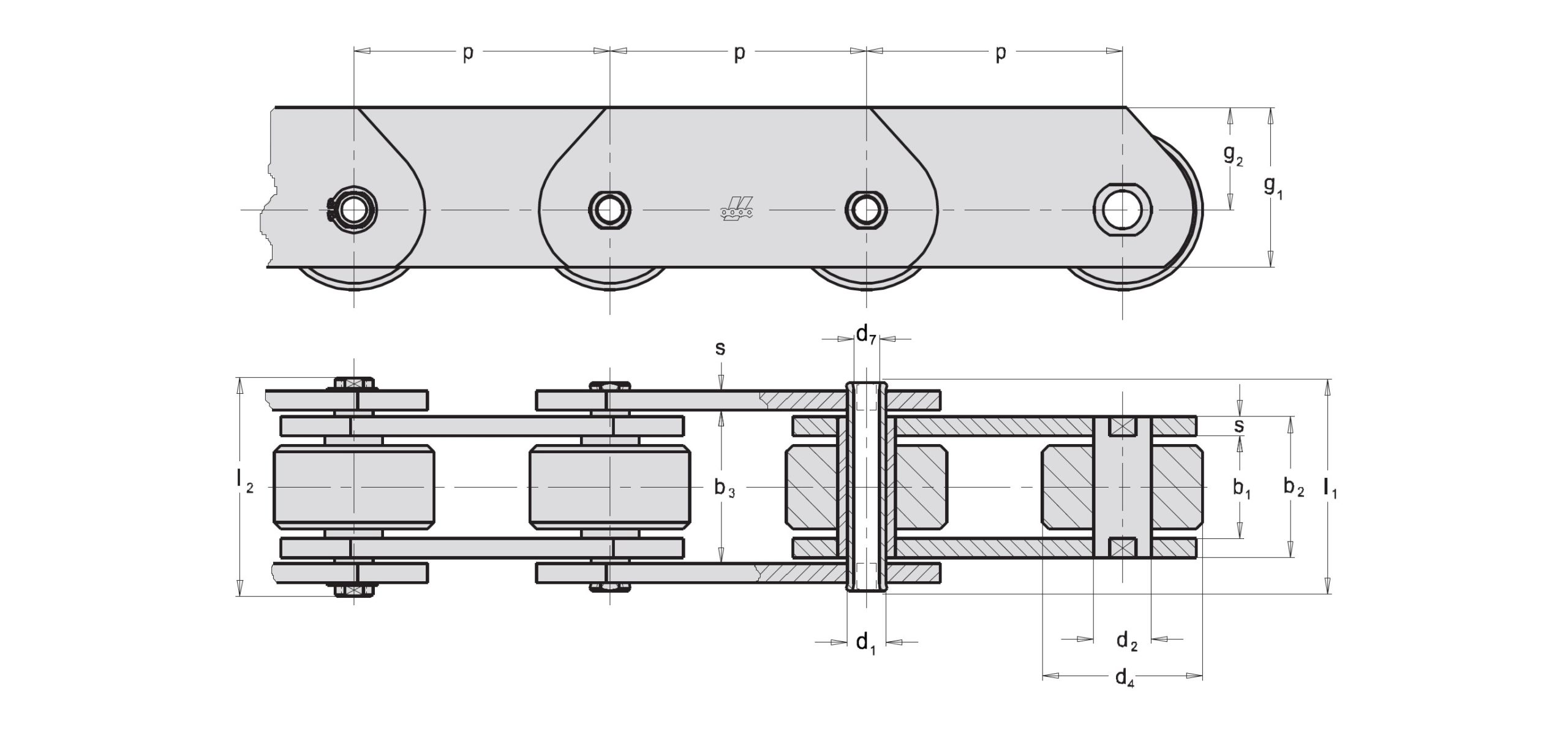

Behordó, csőcsapos láncok, MCT sorozat (DIN8167)
| ISO St. | p mm | b1 mm - min. | b2 mm - max. | b3 mm - min. | d1 mm | d2 mm | d4 mm P | d7 mm | g1 mm | g2 mm | s mm | l1 mm - max. | l2 mm - max. | f mm2 | FB kN min | FA kN |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCT 28 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 20 | 28 | 28,3 | 13,0 | 17,5 | 36 | 8,2 | 35 | 22,5 | 3,5 | 42 | 47 | 364 | 28 | 4,0 |
| MCT 56 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 24 | 33 | 33,3 | 15,5 | 21,0 | 50 | 10,2 | 50 | 32,5 | 4,0 | 48 | 54 | 511 | 56 | 8,0 |
| MCT 112 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 32 | 45 | 45,5 | 22,0 | 29,0 | 70 | 14,3 | 70 | 45,0 | 6,0 | 67 | 73 | 990 | 112 | 16,0 |
| MCT 224 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 43 | 60 | 60,6 | 31,0 | 41,0 | 100 | 20,3 | 100 | 65,0 | 8,0 | 90 | 96 | 1860 | 224 | 32,0 |
